Joint phase retrieval and tomography reconstruction using the reprojection methodΒΆ
[1]:
import numpy as np
import cupy as cp
from holotomocupy.holo import G, GT
from holotomocupy.shift import S, ST, registration_shift
from holotomocupy.tomo import R, RT
from holotomocupy.chunking import gpu_batch
from holotomocupy.recon_methods import CTFPurePhase, multiPaganin
from holotomocupy.proc import dai_yuan, linear
from holotomocupy.utils import *
import holotomocupy.chunking as chunking
%matplotlib inline
chunking.global_chunk = 20
astropy module not found
olefile module not found
[ ]:
# Init data sizes and parametes of the PXM of ID16A
[2]:
n = 256 # object size in each dimension
ntheta = 180 # number of angles (rotations)
center = n/2 # rotation axis
theta = cp.linspace(0, np.pi, ntheta).astype('float32') # projection angles
npos = 1 # number of code positions
detector_pixelsize = 3e-6*0.5
energy = 33.35 # [keV] xray energy
wavelength = 1.2398419840550367e-09/energy # [m] wave length
focusToDetectorDistance = 1.28 # [m]
sx0 = 3.7e-4
z1 = 4.584e-3-sx0#np.array([4.584e-3, 4.765e-3, 5.488e-3, 6.9895e-3])[:npos]-sx0
z1 = np.tile(z1,[npos])
z2 = focusToDetectorDistance-z1
distances = (z1*z2)/focusToDetectorDistance
magnifications = focusToDetectorDistance/z1
voxelsize = detector_pixelsize/magnifications[0]*2048/n # object voxel size
norm_magnifications = magnifications/magnifications[0]
# scaled propagation distances due to magnified probes
distances = distances*norm_magnifications**2
z1p = 12e-3 # positions of the code and the probe for reconstruction
z2p = z1-np.tile(z1p, len(z1))
# magnification when propagating from the probe plane to the detector
magnifications2 = z1/z1p
# propagation distances after switching from the point source wave to plane wave,
distances2 = (z1p*z2p)/(z1p+z2p)
norm_magnifications2 = magnifications2/(z1p/z1[0]) # normalized magnifications
# scaled propagation distances due to magnified probes
distances2 = distances2*norm_magnifications2**2
distances2 = distances2*(z1p/z1)**2
# allow padding if there are shifts of the probe
pad = n//16*0
# sample size after demagnification
ne = n+2*pad
[ ]:
## Read data
[3]:
data00 = np.zeros([ntheta, npos, n, n], dtype='float32')
for k in range(npos):
data00[:, k] = read_tiff(f'data/data_{n}_{k}.tiff')[:ntheta]
code = np.load('data/code.npy')
shifts_code = np.load('data/shifts_code.npy')[:, :npos]
[ ]:
# Construct operators
[ ]:
#### Forward holo: $d=\mathcal{G}_{z}\left(\mathcal{G}_{z'}(q(\mathcal{S}_{s_{j}}c))\psi\right)$,
#### Adjoint holo: $\psi=\sum_j\left((\mathcal{G}_{z_j'}(q\mathcal{S}_{s'_{kj}}c))^*\mathcal{G}^H_{z}d\right)$.
[4]:
@gpu_batch
def _fwd_holo(psi, shifts_code, code, prb):
prb = cp.array(prb)
code = cp.array(code)
shifts_code = cp.array(shifts_code)
data = cp.zeros([psi.shape[0],npos,n,n],dtype='complex64')
for i in range(npos):
# ill shift for each acquisition
prbr = cp.tile(prb,[psi.shape[0],1,1])
# code shift for each acquisition
coder = cp.tile(code,[psi.shape[0],1,1])
coder = S(coder, shifts_code[:,i])
coder = coder[:,ne-n//2-pad:ne+n//2+pad,ne-n//2-pad:ne+n//2+pad]
# multiply the code and ill
prbr *= coder
# propagate illumination
prbr = G(prbr, wavelength, voxelsize, distances2[i])
psir = psi.copy()
# multiply the ill and object
psir *= prbr
# propagate both
psir = G(psir, wavelength, voxelsize, distances[i])
data[:,i] = psir[:,pad:n+pad,pad:n+pad]
return data
def fwd_holo(psi, prb):
return _fwd_holo(psi, shifts_code, code, prb)
@gpu_batch
def _adj_holo(data, shifts_code, code, prb):
prb = cp.array(prb)
code = cp.array(code)
shifts_code = cp.array(shifts_code)
psi = cp.zeros([data.shape[0], ne, ne], dtype='complex64')
for j in range(npos):
psir = cp.pad(data[:, j], ((0, 0), (pad, pad), (pad, pad)))
# propagate data back
psir = GT(psir, wavelength, voxelsize, distances[j])
# ill shift for each acquisition
prbr = cp.tile(prb,[psi.shape[0],1,1])
# code shift for each acquisition
coder = cp.tile(code,[psi.shape[0],1,1])
coder = S(coder, shifts_code[:,j])
coder = coder[:,ne-n//2-pad:ne+n//2+pad,ne-n//2-pad:ne+n//2+pad]
# multiply the code and ill
prbr *= coder
# propagate illumination
prbr = G(prbr, wavelength, voxelsize, distances2[j])
# multiply the conj ill and object
psir *= cp.conj(prbr)
# object shift for each acquisition
psi += psir
return psi
def adj_holo(data, prb):
return _adj_holo(data, shifts_code, code, prb)
# adjoint test
data = data00.copy()
arr1 = np.pad(np.array(data[:, 0]+1j*data[:, 0]).astype('complex64'),
((0, 0), (ne//2-n//2, ne//2-n//2), (ne//2-n//2, ne//2-n//2)), 'symmetric')
prb1 = np.ones([1,n+2*pad,n+2*pad],dtype='complex64')
arr2 = fwd_holo(arr1, prb1)
arr3 = adj_holo(arr2, prb1)
arr4 = fwd_holo(arr3, prb1)
print(f'{np.sum(arr1*np.conj(arr3))}==\n{np.sum(arr2*np.conj(arr2))}')
print(f'{np.sum(arr4*np.conj(arr4))/npos}==\n{np.sum(arr4*np.conj(arr2))}')
arr1=arr1.swapaxes(0,1)
a = RT(arr1,theta,ne//2)
b = R(a,theta,ne//2)
c = RT(b,theta,ne//2)
print(f'{np.sum(arr1*np.conj(b))}==\n{np.sum(a*np.conj(a))}')
print(f'{np.sum(a*np.conj(a))}==\n{np.sum(a*np.conj(c))/ntheta/ne}')
(22267118-0.05254208296537399j)==
(22267114-1.466410503780935e-05j)
(22349708-2.226808646810241e-05j)==
(21998086+0.004937171936035156j)
(1043532480512+47304.6953125j)==
(1043532283904+0.9637213945388794j)
(1043532283904+0.9637213945388794j)==
(1058090359193.6001+60737.833333333336j)
[ ]:

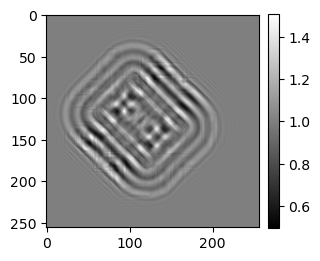

### Propagate the code to the detector and divide all data by it
[5]:
psi = np.ones([ntheta,ne,ne],dtype='complex64')
prb = np.ones([1,n+2*pad,n+2*pad],dtype='complex64')
d = np.abs(fwd_holo(psi,prb))**2
rdata = data00/d
mshow(rdata[0,0])
[6]:
# distances should not be normalized
distances_pag = (distances/norm_magnifications**2)[:npos]
recMultiPaganin = np.exp(1j*multiPaganin(rdata,
distances_pag, wavelength, voxelsize, 150, 1e-12))

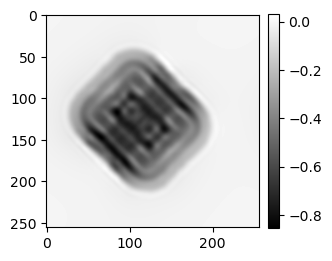

mshow(np.angle(recMultiPaganin[0]))
[ ]:
#### Exponential and logarithm functions for the Transmittance function
[7]:
def exptomo(psi):
"""Exp representation of projections, exp(i\psi\pi/\lambda)"""
return np.exp(1j*psi * voxelsize * 2*cp.pi / wavelength)
def logtomo(psi):
"""Log representation of projections, -i/\nu log(psi)"""
res = psi.copy()
res[np.abs(psi) < 1e-32] = 1e-32
res = np.log(res)
res = -1j * wavelength / (2*cp.pi) * res / voxelsize
return res
<>:2: SyntaxWarning: invalid escape sequence '\p'
<>:2: SyntaxWarning: invalid escape sequence '\p'
/tmp/ipykernel_3368308/1530583021.py:2: SyntaxWarning: invalid escape sequence '\p'
"""Exp representation of projections, exp(i\psi\pi/\lambda)"""
[ ]:
#### Main reconstruction. $\left\||\mathcal{G}_{z}(\mathcal{G}_{z'}(q\mathcal{S}_{s_{j}}c)e^{\frac{2\pi i}{\lambda}\mathcal{R}u})|-\sqrt{d}\right\|_2^2\to min$
[ ]:
# Reprojection
[8]:
def line_search(minf, gamma, fu, fd):
""" Line search for the step sizes gamma"""
while(minf(fu)-minf(fu+gamma*fd) < 0 and gamma > 1e-12):
gamma *= 0.5
if(gamma <= 1e-12): # direction not found
#print('no direction')
gamma = 0
return gamma
def cg_holo_ext(data, init_psi, prb, pars):
"""Conjugate gradients method for holography"""
# minimization functional
@gpu_batch
def _minf(fpsi,data):
res = cp.empty(data.shape[0],dtype='float32')
for k in range(data.shape[0]):
res[k] = np.linalg.norm(cp.abs(fpsi[k])-data[k])**2
return res
def minf(fpsi):
res = np.sum(_minf(fpsi,data))
return res
psi = init_psi.copy()
for i in range(pars['hiter']):
fpsi = fwd_holo(psi,prb)
grad = adj_holo(fpsi-data*np.exp(1j*np.angle(fpsi)),prb)/npos
if i == 0:
d = -grad
else:
d = dai_yuan(d,grad,grad0)
grad0 = grad
# line search
fd = fwd_holo(d,prb)
gamma = line_search(minf, pars['gammapsi'], fpsi, fd)
psi += gamma*d
return psi
def cg_tomo(data, init, pars):
"""Conjugate gradients method for tomogarphy"""
# minimization functional
@gpu_batch
def _minf(Ru,data):
res = cp.empty(data.shape[0],dtype='float32')
for k in range(data.shape[0]):
res[k] = np.linalg.norm(Ru[k]-data[k])**2
return res
def minf(Ru):
res = np.sum(_minf(Ru,data))
return res
u = init.copy()
center_pad = center+ne//4
for i in range(pars['titer']):
fu = R(u,theta,center_pad)
grad = RT(fu-data,theta,center_pad)/np.float32(np.prod(data.shape[1:]))
# Dai-Yuan direction
if i == 0:
d = -grad
else:
d = dai_yuan(d,grad,grad0)
grad0 = grad
fd = R(d, theta, center_pad)
gamma = line_search(minf, pars['gammau'], fu, fd)
u = linear(u,d,1,gamma)
return u
def reproject(data, psi, prb, u, pars):
@gpu_batch
def _minf(fpsi,data):
res = cp.empty(data.shape[0],dtype='float32')
for k in range(data.shape[0]):
res[k] = np.linalg.norm(cp.abs(fpsi[k])-data[k])**2
return res
def minf(fpsi):
res = np.sum(_minf(fpsi,data))
return res
data = np.sqrt(data)
for m in range(pars['niter']):
# solve holography
psi = cg_holo_ext(data, psi, prb, pars)
# solve tomography
xi = logtomo(psi)
xi = np.pad(xi,((0,0),(0,0),(ne//4,ne//4)),'edge')
xi = xi.swapaxes(0,1)
u = cg_tomo(xi, u, pars)
# reproject
Ru = R(u,theta,center+ne//4)[:,:,ne//4:-ne//4].swapaxes(0,1)
psi = exptomo(Ru)
if m%pars['vis_step']==0:

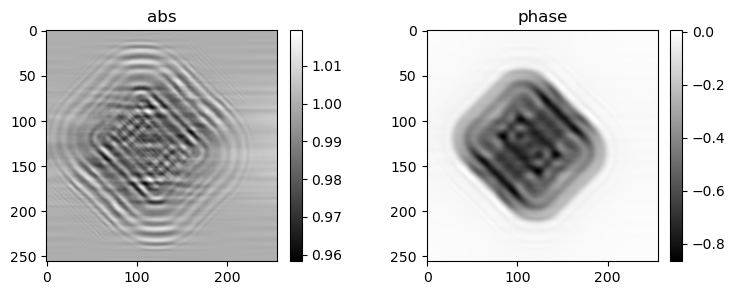

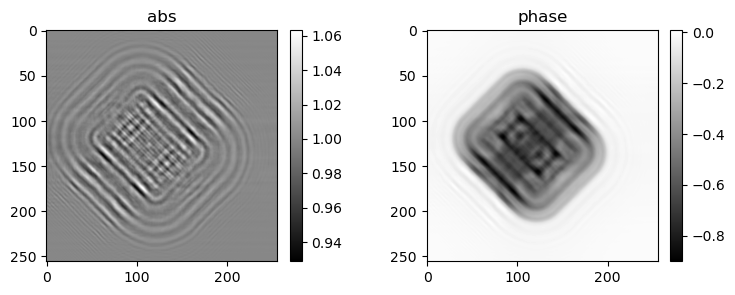

mshow_polar(psi[0])

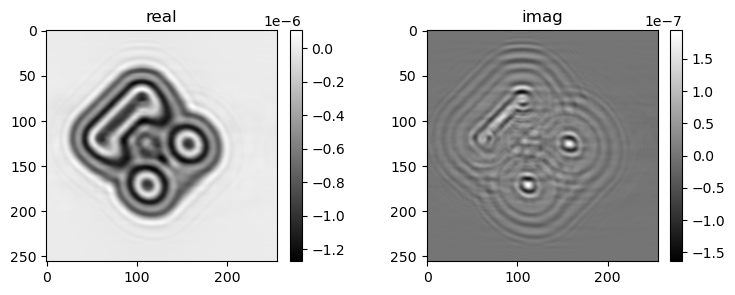

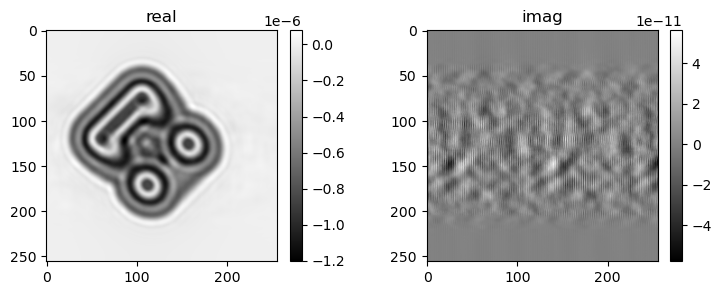

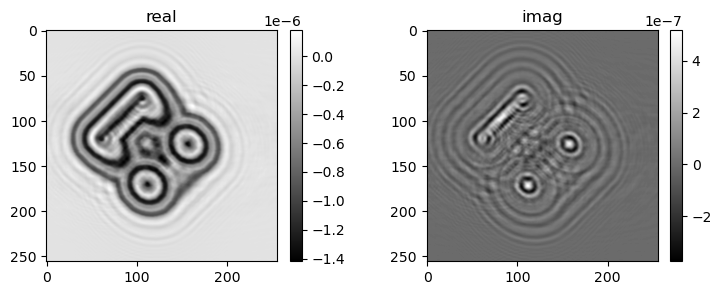

mshow_complex(u[ne//2,ne//4:-ne//4,ne//4:-ne//4])

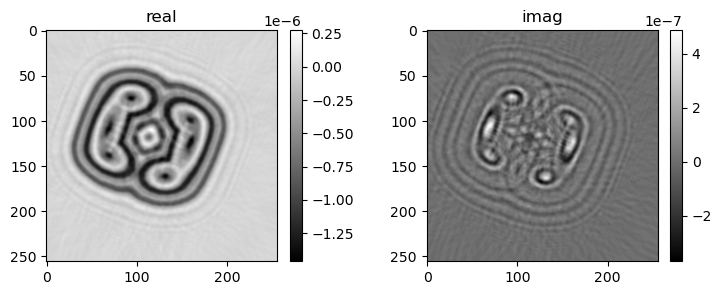

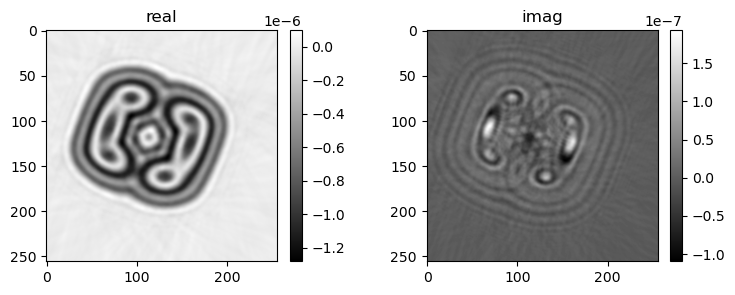

mshow_complex(u[:,ne//2+ne//4+2,ne//4:-ne//4])
if m%pars['err_step']==0:
fpsi = fwd_holo(psi,prb)
err = minf(fpsi)
print(f"{m}) Fidelity: {err:.4e}")
return u, psi
# Initial guess based on the multipaganin's reconsturction
# gpu processing by chunks
# psirec = np.array(recMultiPaganin).copy()
# urec = np.zeros([ne,3*ne//2,3*ne//2],dtype='complex64')
# data = data00.copy()
# fully on GPU
psirec = cp.array(recMultiPaganin)
data = cp.array(data00)
urec = cp.zeros([ne,3*n//2,3*n//2],dtype='complex64')
# tomographic reconstruction from multipaganin's projections
xi = logtomo(psirec).swapaxes(0,1)
xi = np.pad(xi,((0,0),(0,0),(ne//4,ne//4)),'edge')
pars = {'titer':65, 'gammau':0.5}
urec = cg_tomo(xi,urec,pars)
pars = {'niter': 2000, 'titer': 4, 'hiter':4, 'err_step': 4, 'vis_step': 16, 'gammapsi': 0.5, 'gammau': 0.5}
urec, psirec = reproject(data, psirec, prb, urec, pars)
0) Fidelity: 1.8740e+03
4) Fidelity: 6.4386e+02
8) Fidelity: 2.7331e+02
12) Fidelity: 1.2036e+02
16) Fidelity: 7.9190e+01
---------------------------------------------------------------------------
KeyboardInterrupt Traceback (most recent call last)
Cell In[8], line 131
128 urec = cg_tomo(xi,urec,pars)
130 pars = {'niter': 2000, 'titer': 4, 'hiter':4, 'err_step': 4, 'vis_step': 16, 'gammapsi': 0.5, 'gammau': 0.5}
--> 131 urec, psirec = reproject(data, psirec, prb, urec, pars)
Cell In[8], line 96, in reproject(data, psi, prb, u, pars)
94 xi = np.pad(xi,((0,0),(0,0),(ne//4,ne//4)),'edge')
95 xi = xi.swapaxes(0,1)
---> 96 u = cg_tomo(xi, u, pars)
97 # reproject
98 Ru = R(u,theta,center+ne//4)[:,:,ne//4:-ne//4].swapaxes(0,1)
Cell In[8], line 70, in cg_tomo(data, init, pars)
67 d = dai_yuan(d,grad,grad0)
69 grad0 = grad
---> 70 fd = R(d, theta, center_pad)
71 gamma = line_search(minf, pars['gammau'], fu, fd)
72 u = linear(u,d,1,gamma)
File ~/conda/miniforge3/envs/holotomocupy/lib/python3.12/site-packages/holotomocupy/chunking.py:38, in gpu_batch.<locals>.inner(*args, **kwargs)
36 # if array is on gpu then just run the function
37 if isinstance(args[0], cp.ndarray):
---> 38 out = func(*args, **kwargs)
39 return out
41 #else do processing by chunks
File ~/conda/miniforge3/envs/holotomocupy/lib/python3.12/site-packages/holotomocupy/tomo.py:62, in R(obj, theta, rotation_axis)
60 fde = cp.pad(fde, ((0, 0), (m, m), (m, m)))
61 # STEP2: fft 2d
---> 62 wrap_kernel((int(cp.ceil((2 * n + 2 * m)/32)),
63 int(cp.ceil((2 * n + 2 * m)/32)), nz), (32, 32, 1), (fde, n, nz, m))
64 mua = cp.array([mu], dtype='float32')
65 gather_kernel((int(cp.ceil(n/32)), int(cp.ceil(ntheta/32)), nz),
66 (32, 32, 1), (sino, fde, theta, m, mua, n, ntheta, nz, 0))
KeyboardInterrupt:
[ ]:
mshow_complex(urec[:,urec.shape[1]//2+2,ne//4:-ne//4])
