Iterative reconstruction with illumination retrievalΒΆ
[1]:
import numpy as np
import cupy as cp
import matplotlib.pyplot as plt
import h5py
from holotomocupy.holo import G, GT
from holotomocupy.magnification import M, MT
from holotomocupy.shift import S, ST, registration_shift
from holotomocupy.proc import remove_outliers
from holotomocupy.chunking import gpu_batch
from holotomocupy.recon_methods import CTFPurePhase, multiPaganin
from holotomocupy.proc import dai_yuan, linear
import holotomocupy.chunking as chunking
from holotomocupy.utils import *
%matplotlib inline
chunking.global_chunk = 1
[ ]:
# Init data sizes and parametes of the PXM of ID16A
[2]:
n = 2048
ndist = 4
ntheta = 1
# ID16a setup
ndist = 4
detector_pixelsize = 3e-6
energy = 33.35 # [keV] xray energy
wavelength = 1.2398419840550367e-09/energy # [m] wave length
focusToDetectorDistance = 1.28 # [m]
sx0 = 3.7e-4
z1 = np.array([4.584e-3, 4.765e-3, 5.488e-3, 6.9895e-3])[:ndist]-sx0
z2 = focusToDetectorDistance-z1
distances = (z1*z2)/focusToDetectorDistance
magnifications = focusToDetectorDistance/z1
voxelsize = detector_pixelsize/magnifications[0]*2048/n # object voxel size
norm_magnifications = magnifications/magnifications[0]
# scaled propagation distances due to magnified probes
distances = distances*norm_magnifications**2
z1p = z1[0] # positions of the probe for reconstruction
z2p = z1-np.tile(z1p, len(z1))
# magnification when propagating from the probe plane to the detector
magnifications2 = (z1p+z2p)/z1p
# propagation distances after switching from the point source wave to plane wave,
distances2 = (z1p*z2p)/(z1p+z2p)
norm_magnifications2 = magnifications2/(z1p/z1[0]) # normalized magnifications
# scaled propagation distances due to magnified probes
distances2 = distances2*norm_magnifications2**2
distances2 = distances2*(z1p/z1)**2
# allow padding if there are shifts of the probe
pad = n//16
# sample size after demagnification
ne = int(np.ceil((n+2*pad)/norm_magnifications[-1]/8))*8 # make multiple of 8
[3]:
nref = 20
ndark = 20
data00 = np.zeros([ntheta,ndist,n,n],dtype='uint16')
ref00 = np.zeros([nref,ndist,n,n],dtype='uint16')
dark00 = np.zeros([ndark,ndist,n,n],dtype='uint16')
for k in range(ndist):
with h5py.File(f'/data/viktor/SiemensLH_33keV_010nm_holoNfpScan_0{k+1}/SiemensLH_33keV_010nm_holoNfpScan_0{k+1}0000.h5','r') as fid:
data00[:,k] = fid['/entry_0000/measurement/data'][:1,1024-n//2:1024+n//2,1024-n//2:1024+n//2][:]
with h5py.File(f'/data/viktor/SiemensLH_33keV_010nm_holoNfpScan_0{k+1}/ref_0000.h5','r') as fid:
ref00[:,k]=fid['/entry_0000/measurement/data'][:nref,1024-n//2:1024+n//2,1024-n//2:1024+n//2][:]
with h5py.File(f'/data/viktor/SiemensLH_33keV_010nm_holoNfpScan_0{k+1}/dark_0000.h5','r') as fid:
dark00[:,k]=fid['/entry_0000/measurement/data'][:ndark,1024-n//2:1024+n//2,1024-n//2:1024+n//2][:]
# remove outliers
for k in range(ndist):
radius = 7
threshold = 20000
data00[:,k] = remove_outliers(data00[:,k], radius, threshold)
ref00[:,k] = remove_outliers(ref00[:,k], radius, threshold)

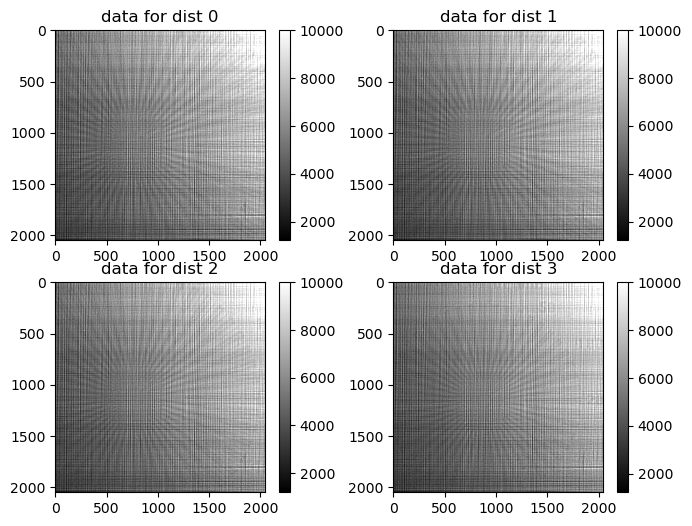

fig, axs = plt.subplots(2, 2, figsize=(8,6))
im=axs[0,0].imshow(data00[0,0],cmap='gray',vmax=10000)
axs[0,0].set_title(f'data for dist {0}')
fig.colorbar(im)
im=axs[0,1].imshow(data00[0,1],cmap='gray',vmax=10000)
axs[0,1].set_title(f'data for dist {1}')
fig.colorbar(im)
im=axs[1,0].imshow(data00[0,2],cmap='gray',vmax=10000)
axs[1,0].set_title(f'data for dist {2}')
fig.colorbar(im)
im=axs[1,1].imshow(data00[0,3],cmap='gray',vmax=10000)
axs[1,1].set_title(f'data for dist {3}')
fig.colorbar(im)

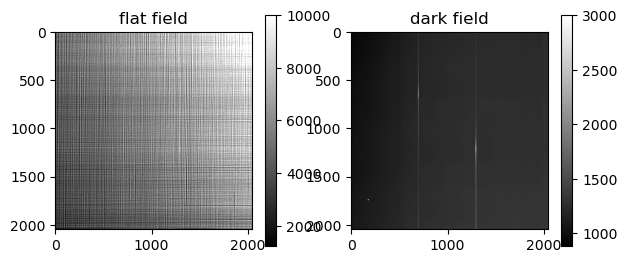

fig, axs = plt.subplots(1, 2, figsize=(7, 3))
im=axs[0].imshow(ref00[0,0],cmap='gray',vmax=10000)
fig.colorbar(im)
axs[0].set_title(f'flat field')
im=axs[1].imshow(dark00[0,0],cmap='gray',vmax=3000)
fig.colorbar(im)
axs[1].set_title(f'dark field')
plt.show()
[ ]:
## Take mean for flat and dark
[4]:
ref00 = np.mean(ref00,axis=0)[np.newaxis]
dark00 = np.mean(dark00,axis=0)[np.newaxis]
[ ]:
### Normalize everything wrt to the mean of the reference image
[5]:
mean_value = np.mean(ref00)
dark00 = dark00.astype('float32')/mean_value
ref00 = ref00.astype('float32')/mean_value
data00 = data00.astype('float32')/mean_value
data00 = data00-np.mean(dark00,axis=0)
ref00 = ref00-np.mean(dark00,axis=0)
data00[data00<0] = 0
ref00[ref00<0] = 0
[ ]:
# Find shifts of reference images
[6]:
shifts_ref0 = np.zeros([1, ndist, 2], dtype='float32')
for k in range(ndist):
shifts_ref0[:, k] = registration_shift(ref00[:, k], ref00[:, 0], upsample_factor=1000)
print(f'Found shifts: \n{shifts_ref0=}')
shifts_ref = np.zeros([ntheta, ndist, 2], dtype='float32')
for k in range(ndist):
im = np.tile(ref00[0, 0], [ntheta, 1, 1])
shifts_ref[:, k] = registration_shift(data00[:, k], im, upsample_factor=1000)
print(f'Found shifts: \n{shifts_ref=}')
Found shifts:
shifts_ref0=array([[[ 0. , 0. ],
[ 0.003, 0.018],
[-0.003, 0.076],
[ 0.149, 0.197]]], dtype=float32)
Found shifts:
shifts_ref=array([[[ 0.003, -0.023],
[ 0.007, -0.006],
[-0.003, 0.05 ],
[ 0.154, 0.166]]], dtype=float32)
[ ]:
### Assuming the shifts are calculated, shifts refs back
[7]:
data0 = data00.copy()
ref0 = ref00.copy()
# shifted refs for correction
for k in range(ndist):
# shift refs back
ref0[:, k] = ST(ref0[:, k].astype('complex64'), shifts_ref0[:, k]).real
ref0c = np.tile(np.array(ref0), (ntheta, 1, 1, 1))
for k in range(ndist):
# shift refs the position where they were when collecting data
ref0c[:, k] = S(ref0c[:, k].astype('complex64'), shifts_ref[:, k]).real

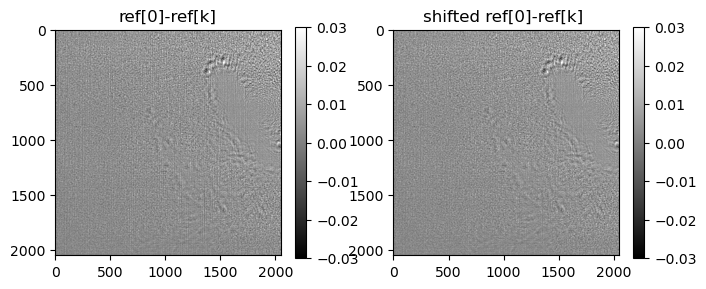

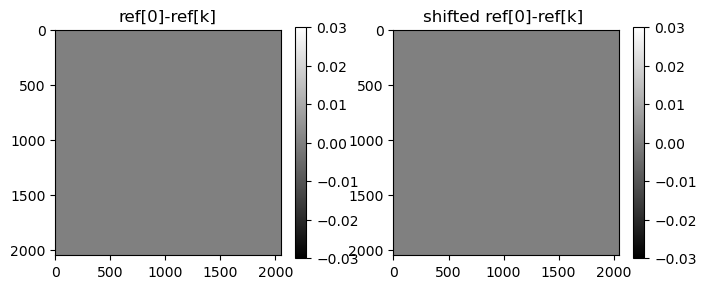

for k in range(4):
fig, axs = plt.subplots(1, 2, figsize=(8, 3))

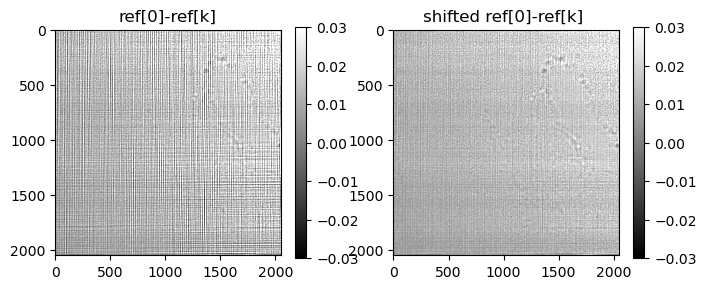

im = axs[0].imshow(ref00[0, 0]-ref00[0, k], cmap='gray',vmax=.03,vmin=-.03)
axs[0].set_title('ref[0]-ref[k]')
fig.colorbar(im)
# ,vmin=-500,vmax=500)
im = axs[1].imshow(ref0[0, 0]-ref0[0, k], cmap='gray',vmax=.03,vmin=-.03)
axs[1].set_title('shifted ref[0]-ref[k] ')
fig.colorbar(im)
[ ]:
### divide data by the reference image
[8]:
rdata = data0/(ref0+1e-9)
[9]:

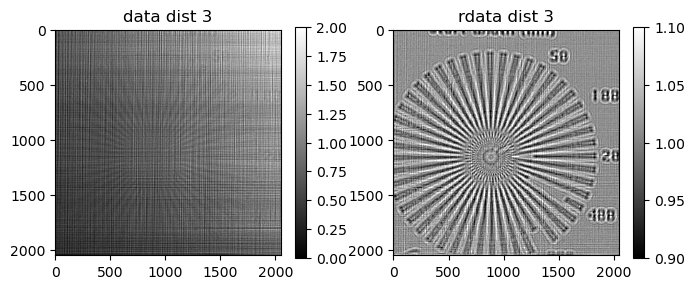

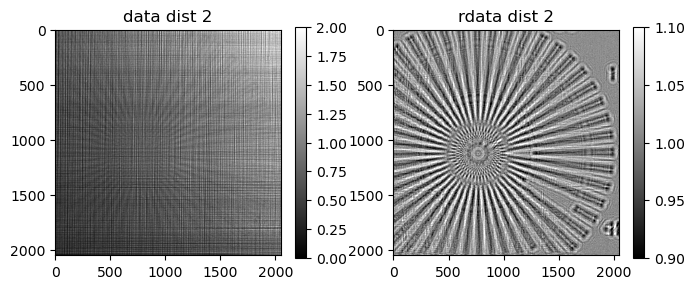

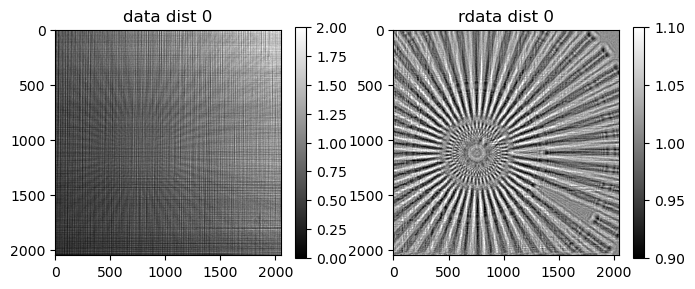

for k in range(ndist):
fig, axs = plt.subplots(1, 2, figsize=(8, 3))
im=axs[0].imshow(data0[0,k],cmap='gray',vmax=2)
axs[0].set_title(f'data dist {k}')
fig.colorbar(im)
im=axs[1].imshow(rdata[0,k],cmap='gray',vmax=1.1,vmin=0.9)
axs[1].set_title(f'rdata dist {k}')
fig.colorbar(im)
[ ]:
### Scale images
[10]:
rdata_scaled = rdata.copy()
for k in range(ndist):
rdata_scaled[:, k] = M(rdata_scaled[:, k], 1/norm_magnifications[k], n).real

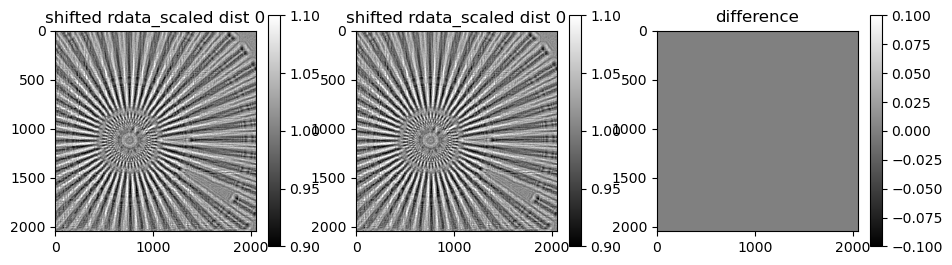

for k in range(ndist):
fig, axs = plt.subplots(1, 3, figsize=(12, 3))
im = axs[0].imshow(rdata_scaled[0, 0], cmap='gray', vmin=0.9, vmax=1.1)
axs[0].set_title(f'shifted rdata_scaled dist {k}')
fig.colorbar(im)
im = axs[1].imshow(rdata_scaled[0, k], cmap='gray', vmin=0.9, vmax=1.1)
axs[1].set_title(f'shifted rdata_scaled dist {k}')
fig.colorbar(im)

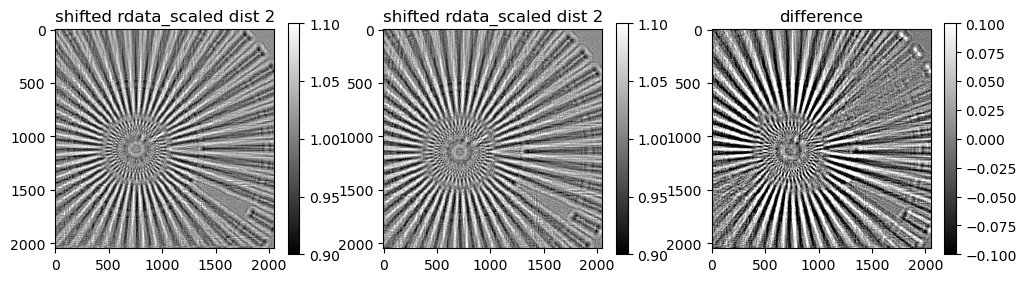

im = axs[2].imshow(rdata_scaled[0, k]-rdata_scaled[0, 0], cmap='gray', vmin=-0.1, vmax=0.1)
axs[2].set_title(f'difference')
fig.colorbar(im)
[ ]:
### Align images between different planes
[ ]:
#### Approach 2. Align CTF reconstructions from 1 distance
[11]:
recCTF_1dist = np.zeros([ntheta, ndist, n, n], dtype='float32')
distances_ctf = (distances/norm_magnifications**2)[:ndist]
for k in range(ndist):
recCTF_1dist[:, k] = CTFPurePhase(
rdata_scaled[:, k:k+1], distances_ctf[k:k+1], wavelength, voxelsize, 1e-2)
plt.figure(figsize=(4, 4))

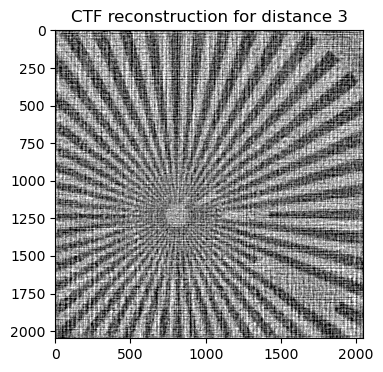

plt.title(f'CTF reconstruction for distance {ndist-1}')
plt.imshow(recCTF_1dist[0, -1], cmap='gray',vmax=0.06,vmin=-0.06)
plt.show()
shifts_drift = np.zeros([ntheta, ndist, 2], dtype='float32')
for k in range(1, ndist):
shifts_drift[:, k] = registration_shift(
recCTF_1dist[:, k], recCTF_1dist[:, 0], upsample_factor=1000)
# note shifts_drift should be after magnification.
shifts_drift *= norm_magnifications[np.newaxis, :, np.newaxis]
print(f'Found shifts: \n{shifts_drift=}')
Found shifts:
shifts_drift=array([[[ 0. , 0. ],
[-12.4732485, 79.67193 ],
[ 21.501446 , -35.64609 ],
[ 72.24373 , 32.312107 ]]], dtype=float32)
[12]:
rdata_scaled_aligned = rdata_scaled.copy()
for k in range(ndist):
rdata_scaled_aligned[:, k] = ST(rdata_scaled[:, k], shifts_drift[:, k]/norm_magnifications[k]).real

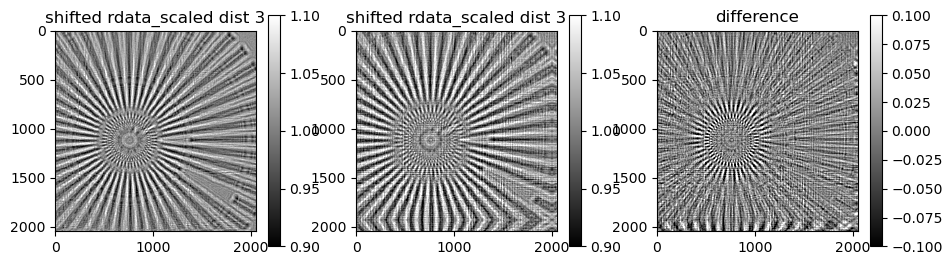

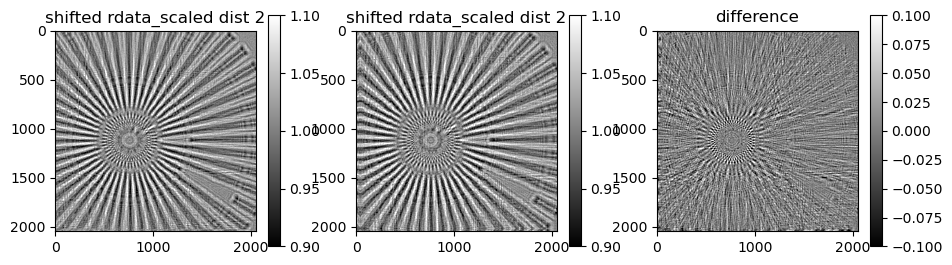

for k in range(ndist):

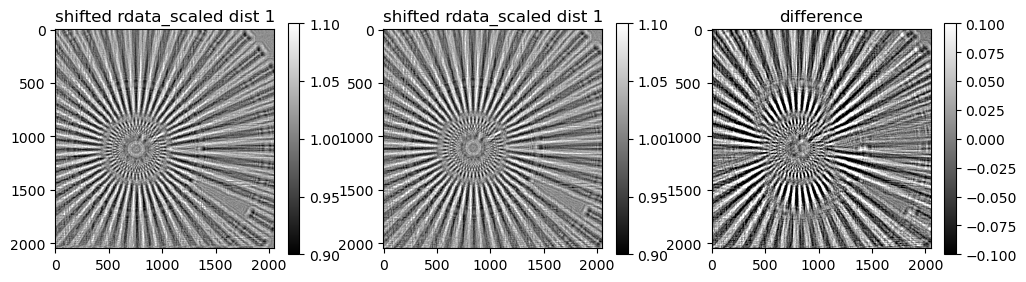

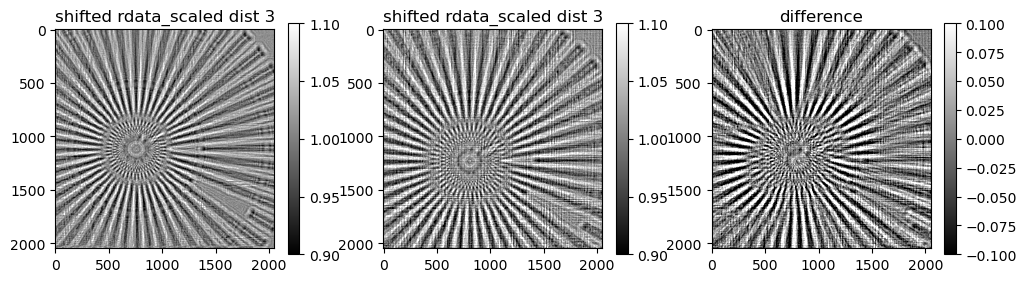

fig, axs = plt.subplots(1, 3, figsize=(11, 3))
im = axs[0].imshow(rdata_scaled_aligned[0, 0], cmap='gray', vmin=.9, vmax=1.1)
axs[0].set_title(f'shifted rdata_scaled dist {k}')
fig.colorbar(im)
im = axs[1].imshow(rdata_scaled_aligned[0, k], cmap='gray', vmin=.9, vmax=1.1)
axs[1].set_title(f'shifted rdata_scaled dist {k}')
fig.colorbar(im)
im = axs[2].imshow(rdata_scaled_aligned[0, k] - rdata_scaled_aligned[0, 0], cmap='gray', vmin=-0.1, vmax=.1)
axs[2].set_title(f'difference')
fig.colorbar(im)
[ ]:
#### set global shifts to drift shifts
[13]:
shifts = shifts_drift
[14]:
# distances should not be normalized
distances_pag = (distances/norm_magnifications**2)[:ndist]
recMultiPaganin = np.exp(1j*multiPaganin(rdata_scaled_aligned,
distances_pag, wavelength, voxelsize, 19, 1e-12))

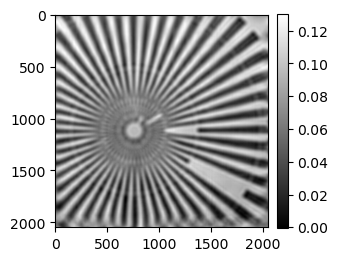

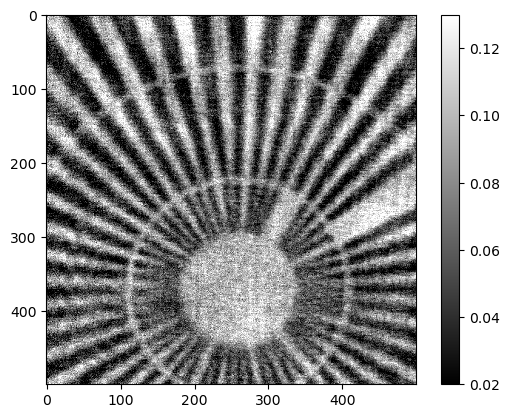

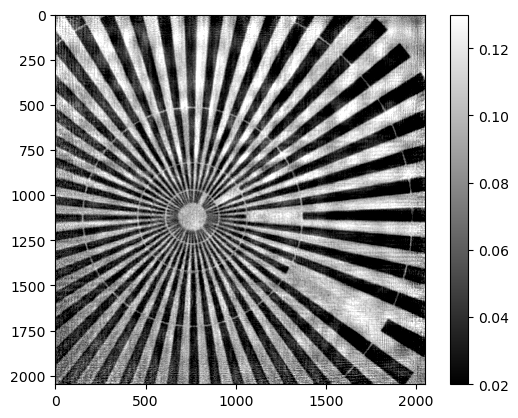

mshow(np.angle(recMultiPaganin[0]))
# dxchange.write_tiff(np.angle(recMultiPaganin), f'data/rec/MultiPaganin.tiff', overwrite=True)
[ ]:
# Construct operators
[ ]:
#### Forward holo: $d=\mathcal{G}_{z_j}\left((\mathcal{G}_{z_j'}\mathcal{S}_{s'_{kj}}q)\mathcal{M}_j\mathcal{S}_{s_{kj}}\psi_k\right)$,
#### Adjoint holo: $\psi=\sum_j\mathcal{S}^H_{s_j}\mathcal{M}_j^H\left((\mathcal{G}_{z_j'}\mathcal{S}_{s'_{kj}}q)^*\mathcal{G}^H_{z_j}d\right)$,
#### Adjoint holo wrt probe: $q=\sum_{j,k}\mathcal{S}_{s_{kj}'}\mathcal{G}_{z_j'}^H\left((\mathcal{M}_j\mathcal{S}_{s_{kj}}\psi_k)^*\mathcal{G}^H_{z_j}d\right)$
[15]:
@gpu_batch
def _fwd_holo(psi, shifts_ref, shifts, prb):
# print(prb.shape)
prb = cp.array(prb)
shifts_ref = cp.array(shifts_ref)
shifts = cp.array(shifts)
data = cp.zeros([psi.shape[0], ndist, n, n], dtype='complex64')
for i in range(ndist):
# ill shift for each acquisition
prbr = cp.tile(prb, [psi.shape[0], 1, 1])
prbr = S(prbr, shifts_ref[:, i])
# propagate illumination
prbr = G(prbr, wavelength, voxelsize, distances2[i])
# object shift for each acquisition
psir = S(psi, shifts[:, i]/norm_magnifications[i])
# scale object
if ne != n:
psir = M(psir, norm_magnifications[i]*ne/(n+2*pad), n+2*pad)
# multiply the ill and object
psir *= prbr
# propagate both
psir = G(psir, wavelength, voxelsize, distances[i])
data[:, i] = psir[:, pad:n+pad, pad:n+pad]
return data
def fwd_holo(psi, prb):
return _fwd_holo(psi, shifts_ref, shifts, prb)
@gpu_batch
def _adj_holo(data, shifts_ref, shifts, prb):
prb = cp.array(prb)
shifts_ref = cp.array(shifts_ref)
shifts = cp.array(shifts)
psi = cp.zeros([data.shape[0], ne, ne], dtype='complex64')
for j in range(ndist):
psir = cp.pad(data[:, j], ((0, 0), (pad, pad), (pad, pad)))
# propagate data back
psir = GT(psir, wavelength, voxelsize, distances[j])
# ill shift for each acquisition
prbr = cp.tile(prb, [data.shape[0], 1, 1])
prbr = S(prbr, shifts_ref[:, j])
# propagate illumination
prbr = G(prbr, wavelength, voxelsize, distances2[j])
# multiply the conj ill and object
psir *= cp.conj(prbr)
# scale object
if ne != n:
psir = MT(psir, norm_magnifications[j]*ne/(n+2*pad), ne)
# object shift for each acquisition
psi += ST(psir, shifts[:, j]/norm_magnifications[j])
return psi
def adj_holo(data, prb):
return _adj_holo(data, shifts_ref, shifts, prb)
@gpu_batch
def _adj_holo_prb(data, shifts_ref, shifts, psi):
shifts_ref = cp.array(shifts_ref)
shifts = cp.array(shifts)
prb = cp.zeros([data.shape[0], n+2*pad, n+2*pad], dtype='complex64')
for j in range(ndist):
prbr = np.pad(data[:, j], ((0, 0), (pad, pad), (pad, pad)))
psir = psi.copy()
# propagate data back
prbr = GT(prbr, wavelength, voxelsize, distances[j])
# object shift for each acquisition
psir = S(psir, shifts[:, j]/norm_magnifications[j])
# scale object
psir = M(psir, norm_magnifications[j]*ne/(n+2*pad), n+2*pad)
# multiply the conj object and ill
prbr *= cp.conj(psir)
# propagate illumination
prbr = GT(prbr, wavelength, voxelsize, distances2[j])
# ill shift for each acquisition
prbr = ST(prbr, shifts_ref[:, j])
prb += prbr
return prb
def adj_holo_prb(data, psi):
''' Adjoint Holography operator '''
return np.sum(_adj_holo_prb(data, shifts_ref, shifts, psi), axis=0)[np.newaxis]
# adjoint test
data = data0.copy()
ref = ref0.copy()
arr1 = np.pad(np.array(data[:, 0]+1j*data[:, 0]).astype('complex64'),
((0, 0), (ne//2-n//2, ne//2-n//2), (ne//2-n//2, ne//2-n//2)), 'symmetric')
prb1 = np.array(ref[0, :1]+1j*ref[0, :1]).astype('complex64')
prb1 = np.pad(prb1, ((0, 0), (pad, pad), (pad, pad)))
arr2 = fwd_holo(arr1, prb1)
arr3 = adj_holo(arr2, prb1)
arr4 = adj_holo_prb(arr2, arr1)
print(f'{np.sum(arr1*np.conj(arr3))}==\n{np.sum(arr2*np.conj(arr2))}')
print(f'{np.sum(prb1*np.conj(arr4))}==\n{np.sum(arr2*np.conj(arr2))}')
(60660204+5.663764953613281j)==
(60663612+0.0001766374771250412j)
(60663532-9.498046875j)==
(60663612+0.0001766374771250412j)
[ ]:
#### Forward holo without sample: $d=\mathcal{G}_{z_j}\mathcal{S}_{s'_{j}}q$,
#### Adjoint holo without sample: $q=\sum_j\mathcal{S}^H_{s'_{j}}\mathcal{G}^H_{z_j}d$
[16]:
@gpu_batch
def _fwd_holo0(prb, shifts_ref0):
shifts_ref0 = cp.array(shifts_ref0)
data = cp.zeros([1, ndist, n, n], dtype='complex64')
for j in range(ndist):
# ill shift for each acquisition
prbr = S(prb, shifts_ref0[:, j])
# propagate illumination
data[:, j] = G(prbr, wavelength, voxelsize, distances[0])[:, pad:n+pad, pad:n+pad]
return data
def fwd_holo0(prb):
return _fwd_holo0(prb, shifts_ref0)
@gpu_batch
def _adj_holo0(data, shifts_ref0):
shifts_ref0 = cp.array(shifts_ref0)
prb = cp.zeros([1, n+2*pad, n+2*pad], dtype='complex64')
for j in range(ndist):
# ill shift for each acquisition
prbr = cp.pad(data[:, j], ((0, 0), (pad, pad), (pad, pad)))
# propagate illumination
prbr = GT(prbr, wavelength, voxelsize, distances[0])
# ill shift for each acquisition
prb += ST(prbr, shifts_ref0[:, j])
return prb
def adj_holo0(data):
return _adj_holo0(data, shifts_ref0)
# adjoint test
data = data0[0, :].copy()
ref = ref0.copy()
prb1 = np.array(ref[0, :1]+1j*ref[0, :1]).astype('complex64')
prb1 = np.pad(prb1, ((0, 0), (pad, pad), (pad, pad)))
arr2 = fwd_holo0(prb1)
arr3 = adj_holo0(arr2)
print(f'{np.sum(prb1*np.conj(arr3))}==\n{np.sum(arr2*np.conj(arr2))}')
(25824470-0.56884765625j)==
(25824472+0.00010867322271224111j)
[ ]:
#### Approximate the probe by solving the L2-norm minimization problem for reference images
[17]:
def line_search(minf, gamma, fu, fd):
""" Line search for the step sizes gamma"""
while (minf(fu)-minf(fu+gamma*fd) < 0 and gamma > 1e-12):
gamma *= 0.5
if (gamma <= 1e-12): # direction not found
# print('no direction')
gamma = 0
return gamma
def cg_holo(ref, init_prb, pars):
"""Conjugate gradients method for holography"""
# minimization functional
def minf(fprb):
f = np.linalg.norm(np.abs(fprb)-ref)**2
return f
ref = np.sqrt(ref)
prb = init_prb.copy()
for i in range(pars['niter']):
fprb0 = fwd_holo0(prb)
gradprb = adj_holo0(fprb0-ref*np.exp(1j*np.angle(fprb0)))
if i == 0:
dprb = -gradprb
else:
dprb = dai_yuan(dprb,gradprb,gradprb0)
gradprb0 = gradprb
# line search
fdprb0 = fwd_holo0(dprb)
gammaprb = line_search(minf, pars['gammaprb'], fprb0, fdprb0)
prb = prb + gammaprb*dprb
if i % pars['err_step'] == 0:
fprb0 = fwd_holo0(prb)
err = minf(fprb0)
print(f'{i}) {gammaprb=}, {err=:1.5e}')
if i % pars['vis_step'] == 0:
mshow_polar(prb[0])
return prb
rec_prb0 = np.ones([1, n+2*pad, n+2*pad], dtype='complex64')
ref = ref00.copy()
pars = {'niter': 17, 'err_step': 1, 'vis_step': 16, 'gammaprb': 0.5}
rec_prb0 = cg_holo(ref, rec_prb0, pars)

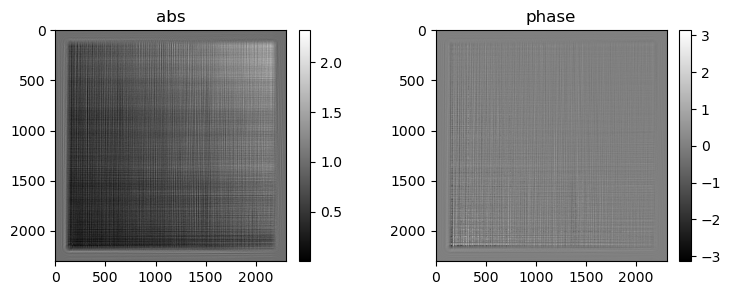

0) gammaprb=0.5, err=9.20249e+05
1) gammaprb=0.5, err=2.94941e+05
2) gammaprb=0.5, err=2.05872e+05
3) gammaprb=0.5, err=9.08458e+04
4) gammaprb=0.5, err=4.41711e+04
5) gammaprb=0.5, err=2.52774e+04
6) gammaprb=0.5, err=1.13493e+04
7) gammaprb=0.5, err=7.13952e+03
8) gammaprb=0.5, err=3.78985e+03
9) gammaprb=0.5, err=2.67607e+03
10) gammaprb=0.5, err=1.82202e+03
11) gammaprb=0.5, err=1.51369e+03
12) gammaprb=0.5, err=1.25078e+03
13) gammaprb=0.5, err=1.14044e+03
14) gammaprb=0.5, err=1.03703e+03
15) gammaprb=0.5, err=9.79795e+02
16) gammaprb=0.5, err=9.15427e+02
[ ]:
#### Main reconstruction. $\ \sum_k\sum_j||\mathcal{G}_{z_j}((\mathcal{G}_{z'_j}S_{s'_{kj}}q)(M_j S_{s_{kj}}\psi_k))|-\sqrt{d_{kj}}\|^2_2 + \||\mathcal{G}_{z_0}S_{s^r_j}q|-\sqrt{d^r}\|_2^2\to \text{min}_{\psi_k,q}$
[18]:
def line_search(minf, gamma, fu, fu0, fd, fd0):
""" Line search for the step sizes gamma"""
while (minf(fu, fu0)-minf(fu+gamma*fd, fu0+gamma*fd0) < 0 and gamma >= 1/64):
gamma *= 0.5
if (gamma < 1/64): # direction not found
# print('no direction')
gamma = 0
return gamma
@gpu_batch
def _gradient(psi, data, shifts_ref, shifts, prb):
prb = cp.array(prb)
shifts_ref = cp.array(shifts_ref)
shifts = cp.array(shifts)
res = cp.zeros([psi.shape[0], ne, ne], dtype='complex64')
fpsires = cp.zeros([psi.shape[0], ndist, n, n], dtype='complex64')
for j in range(ndist):
# ill shift for each acquisition
prbr = cp.tile(prb, [psi.shape[0], 1, 1])
prbr = S(prbr, shifts_ref[:, j])
# propagate illumination
prbr = G(prbr, wavelength, voxelsize, distances2[j])
# object shift for each acquisition
psir = S(psi, shifts[:, j]/norm_magnifications[j])
# scale object
if ne != n:
psir = M(psir, norm_magnifications[j]*ne/(n+2*pad), n+2*pad)
# multiply the ill and object
psir *= prbr
# propagate both
psir = G(psir, wavelength, voxelsize, distances[j])
fpsi = psir[:, pad:n+pad, pad:n+pad]
fpsires[:, j] = fpsi
###########################
psir = fpsi-data[:, j]*np.exp(1j*(np.angle(fpsi)))
psir = cp.pad(psir, ((0, 0), (pad, pad), (pad, pad)))
# propagate data back
psir = GT(psir, wavelength, voxelsize, distances[j])
# ill shift for each acquisition
prbr = cp.tile(prb, [psi.shape[0], 1, 1])
prbr = S(prbr, shifts_ref[:, j])
# propagate illumination
prbr = G(prbr, wavelength, voxelsize, distances2[j])
# multiply the conj ill and object
psir *= cp.conj(prbr)
# scale object
if ne != n:
psir = MT(psir, norm_magnifications[j]*ne/(n+2*pad), ne)
# object shift for each acquisition
res += ST(psir, shifts[:, j]/norm_magnifications[j])
# probe normalization
res /= cp.amax(cp.abs(prb))**2
return [res, fpsires]
def gradient(psi, data, prb):
''' Gradient wrt psi'''
return _gradient(psi, data, shifts_ref, shifts, prb)
@gpu_batch
def _gradientprb(psi, data, shifts_ref, shifts, prb):
prb = cp.array(prb)
shifts_ref = cp.array(shifts_ref)
shifts = cp.array(shifts)
res = cp.zeros([psi.shape[0], n+2*pad, n+2*pad], dtype='complex64')
fpsires = cp.zeros([psi.shape[0], ndist, n, n], dtype='complex64')
for j in range(ndist):
# ill shift for each acquisition
prbr = cp.tile(prb, [psi.shape[0], 1, 1])
prbr = S(prbr, shifts_ref[:, j])
# propagate illumination
prbr = G(prbr, wavelength, voxelsize, distances2[j])
# object shift for each acquisition
psir = S(psi, shifts[:, j]/norm_magnifications[j])
# scale object
if ne != n:
psir = M(psir, norm_magnifications[j]*ne/(n+2*pad), n+2*pad)
# multiply the ill and object
psir *= prbr
# propagate both
psir = G(psir, wavelength, voxelsize, distances[j])
fpsi = psir[:, pad:n+pad, pad:n+pad]
fpsires[:, j] = fpsi
###########################
fpsi = fpsi-data[:, j]*np.exp(1j*(np.angle(fpsi)))
prbr = np.pad(fpsi, ((0, 0), (pad, pad), (pad, pad)))
psir = psi.copy()
# propagate data back
prbr = GT(prbr, wavelength, voxelsize, distances[j])
# object shift for each acquisition
psir = S(psir, shifts[:, j]/norm_magnifications[j])
# scale object
psir = M(psir, norm_magnifications[j]*ne/(n+2*pad), n+2*pad)
# multiply the conj object and ill
prbr *= cp.conj(psir)
# propagate illumination
prbr = GT(prbr, wavelength, voxelsize, distances2[j])
# ill shift for each acquisition
prbr = ST(prbr, shifts_ref[:, j])
res += prbr
return [res, fpsires]
def gradientprb(psi, data, prb):
''' Gradient wrt prb'''
[gradprb, fprb] = _gradientprb(psi, data, shifts_ref, shifts, prb)
gradprb = np.sum(gradprb, axis=0)[np.newaxis]
return [gradprb, fprb]
def cg_holo(data, ref, init, init_prb, pars):
"""Conjugate gradients method for holography"""
# minimization functional
def minf(fpsi, fprb):
f = np.linalg.norm(np.abs(fpsi)-data)**2
if isinstance(fprb, np.ndarray) or isinstance(fprb, cp.ndarray):
f += np.linalg.norm(np.abs(fprb)-ref)**2
return f
data = np.sqrt(data)
ref = np.sqrt(ref)
psi = init.copy()
prb = init_prb.copy()
conv = np.zeros(1+pars['niter']//pars['err_step'])
for i in range(pars['niter']):
if pars['upd_psi']:
[grad, fpsi] = gradient(psi, data, prb)
# Dai-Yuan direction
if i == 0:
d = -grad
else:
d = dai_yuan(d,grad,grad0)
grad0 = grad
fd = fwd_holo(d, prb)
gammapsi = line_search(minf, pars['gammapsi'], fpsi, 0, fd, 0)
psi = linear(psi,d,1,gammapsi)
if pars['upd_prb']:
[gradprb, fprb] = gradientprb(psi, data, prb)
fprb0 = fwd_holo0(prb)
gradprb += adj_holo0(fprb0-ref*np.exp(1j*np.angle(fprb0)))
gradprb *= 1/(ntheta+1)
# Dai-Yuan direction
if i == 0:
dprb = -gradprb
else:
dprb = dai_yuan(dprb,gradprb,gradprb0)
gradprb0 = gradprb
# line search
fdprb = fwd_holo(psi, dprb)
fdprb0 = fwd_holo0(dprb)
gammaprb = line_search(
minf, pars['gammaprb'], fprb, fprb0, fdprb, fdprb0)
prb = prb + gammaprb*dprb
if i % pars['err_step'] == 0:
fprb = fwd_holo(psi, prb)
fprb0 = fwd_holo0(prb)
err = minf(fprb, fprb0)
conv[i//pars['err_step']] = err
print(f'{i}) {gammapsi=} {gammaprb=}, {err=:1.5e}')
if i % pars['vis_step'] == 0:
mshow_polar(psi[0,ne//2-n//2:ne//2+n//2,ne//2-n//2:ne//2+n//2])
mshow_polar(prb[0])
return psi, prb, conv
# if by chunk on gpu
# rec = np.pad(recMultiPaganin, ((0, 0), (ne//2-n//2, ne//2-n//2),
# (ne//2-n//2, ne//2-n//2)), 'edge')
# rec_prb = rec_prb0.copy()
# ref = ref00.copy()
# data = data00.copy()
#if fully on gpu:
rec = cp.pad(cp.array(recMultiPaganin), ((0, 0), (ne//2-n//2, ne//2-n//2),
(ne//2-n//2, ne//2-n//2)), 'edge')
rec_prb = cp.array(rec_prb0)
ref = cp.array(ref00)
data = cp.array(data00)
pars = {'niter': 65, 'upd_psi': True, 'upd_prb': True,
'err_step': 4, 'vis_step': 32, 'gammapsi': 0.5, 'gammaprb': 0.5}
rec, rec_prb, conv = cg_holo(data, ref, rec, rec_prb, pars)

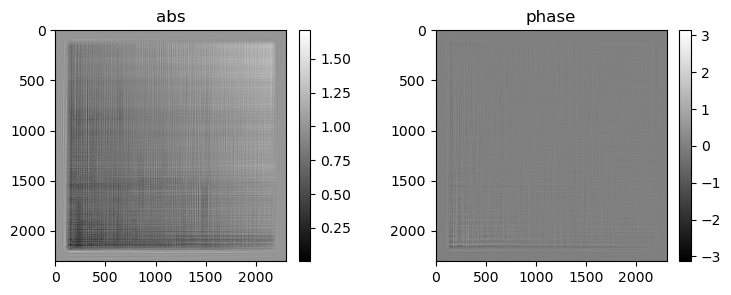

0) gammapsi=0.5 gammaprb=0.5, err=4.73713e+03
4) gammapsi=0.5 gammaprb=0, err=2.19222e+03
8) gammapsi=0.5 gammaprb=0.25, err=1.82810e+03
---------------------------------------------------------------------------
KeyboardInterrupt Traceback (most recent call last)
Cell In[18], line 220
214 data = cp.array(data00)
217 pars = {'niter': 65, 'upd_psi': True, 'upd_prb': True,
218 'err_step': 4, 'vis_step': 32, 'gammapsi': 0.5, 'gammaprb': 0.5}
--> 220 rec, rec_prb, conv = cg_holo(data, ref, rec, rec_prb, pars)
Cell In[18], line 168, in cg_holo(data, ref, init, init_prb, pars)
165 psi = linear(psi,d,1,gammapsi)
167 if pars['upd_prb']:
--> 168 [gradprb, fprb] = gradientprb(psi, data, prb)
169 fprb0 = fwd_holo0(prb)
170 gradprb += adj_holo0(fprb0-ref*np.exp(1j*np.angle(fprb0)))
Cell In[18], line 131, in gradientprb(psi, data, prb)
129 def gradientprb(psi, data, prb):
130 ''' Gradient wrt prb'''
--> 131 [gradprb, fprb] = _gradientprb(psi, data, shifts_ref, shifts, prb)
132 gradprb = np.sum(gradprb, axis=0)[np.newaxis]
133 return [gradprb, fprb]
File ~/conda/miniforge3/envs/holotomo/lib/python3.10/site-packages/holotomocupy/chunking.py:38, in gpu_batch.<locals>.inner(*args, **kwargs)
36 # if array is on gpu then just run the function
37 if isinstance(args[0], cp.ndarray):
---> 38 out = func(*args, **kwargs)
39 return out
41 #else do processing by chunks
Cell In[18], line 114, in _gradientprb(psi, data, shifts_ref, shifts, prb)
111 psir = S(psir, shifts[:, j]/norm_magnifications[j])
113 # scale object
--> 114 psir = M(psir, norm_magnifications[j]*ne/(n+2*pad), n+2*pad)
116 # multiply the conj object and ill
117 prbr *= cp.conj(psir)
File ~/conda/miniforge3/envs/holotomo/lib/python3.10/site-packages/holotomocupy/chunking.py:38, in gpu_batch.<locals>.inner(*args, **kwargs)
36 # if array is on gpu then just run the function
37 if isinstance(args[0], cp.ndarray):
---> 38 out = func(*args, **kwargs)
39 return out
41 #else do processing by chunks
File ~/conda/miniforge3/envs/holotomo/lib/python3.10/site-packages/holotomocupy/magnification.py:53, in M(f, magnification, n)
50 if ne == n and (magnification-1.0) < 1e-6:
51 return f.copy()
---> 53 m, mu, phi, c2dfftshift, c2dfftshift0 = _init(ne)
54 # FFT2D
55 fde = cp.fft.fft2(f*c2dfftshift0)*c2dfftshift0
File ~/conda/miniforge3/envs/holotomo/lib/python3.10/site-packages/holotomocupy/magnification.py:11, in _init(ne)
9 eps = 1e-3 # accuracy of usfft
10 mu = -cp.log(eps) / (2 * ne * ne)
---> 11 m = int(cp.ceil(2 * ne * 1 / cp.pi * cp.sqrt(-mu *
12 cp.log(eps) + (mu * ne) * (mu * ne) / 4)))
13 # extra arrays
14 # interpolation kernel
15 t = cp.linspace(-1/2, 1/2, ne, endpoint=False).astype('float32')
KeyboardInterrupt:
[ ]:

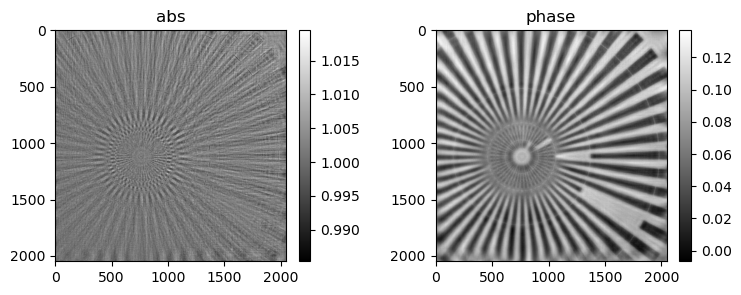

rrec=rec[0,ne//2-n//2:ne//2+n//2,ne//2-n//2:ne//2+n//2]
plt.imshow(cp.angle(rrec).get(), cmap='gray',vmax=0.13,vmin=0.02)
plt.colorbar()
plt.show()
plt.imshow(cp.angle(rrec[750:750+500,500:1000]).get(), cmap='gray',vmax=0.13,vmin=0.02)
# plt.imshow(cp.angle(rrec[750:750+500,500:1000]).get(), cmap='gray',vmax=0.05,vmin=-0.05)
plt.colorbar()
plt.show()
[ ]:
